Design
Illumination:The device has illumination.
Illumination colour:The colour of the illumination, which is the light which allows you the see the display etc. clearly.
Multi
Number of fans:The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
3 fan(s)
Cooling technology:
Palit TurboFan Blade 3.0
Cooling type:The method used to cool the device or to cool the air around the device.
Active
Logistics data
Harmonized System (HS) code:
84733020
Memory
Memory bandwidth (max):
608 GB/s
Memory bus:Hardware and software that connects the main memory to the memory controller in computer systems. Originally, general-purpose buses like VMEbus and the S-100 bus were used, but to reduce latency, modern memory buses are designed to connect directly to DRAM chips, and thus are designed by chip standards bodies such as JEDEC.
256 bit
Graphics card memory type:
GDDR6X
Discrete graphics card memory:
8 GB
Packaging content
Packaging data
Package type:The type of product package e.g. box.
Box
Performance
Dual Link DVI:A dual-link DVI interface sends data over both of the DVI links to the monitor, and this is how higher resolutions are achieved. With dual-link DVI, a resolution of 2048 x 1536 is possible.
HDCP:High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.
Virtual Reality (VR) ready:
OpenGL version:OpenGL (Open Graphics Library) is a specification defining a cross-language cross-platform API for writing applications that produce 3D computer graphics (and 2D computer graphics as well). The interface consists of over 250 different function calls which can be used to draw complex three-dimensional scenes from simple primitives.
4.6
DirectX version:DirectX is a collection of APIs (application programming interfaces) for easily handling tasks related to game programming on the Microsoft Windows operating system.
12 Ultimate
PhysX:PPU (microprocessor) expansion card designed by Ageia to accelerate PhysX-enabled video games.
Ports & interfaces
VGA (D-Sub) ports quantity:Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.
0
DisplayPorts quantity:Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.
3
DVI-D ports quantity:This is the amount of DVI-I interfaces. Digital Visual Interface (DVI) is a video display interface developed by the Digital Display Working Group (DDWG). The digital interface is used to connect a video source to a display device, such as a computer monitor. DVI-D means DVI digital, which means it can only support digital, but not analog.
0
DVI-I ports quantity:This is the amount of DVI-I interfaces. Digital Visual Interface (DVI) is a video display interface developed by the Digital Display Working Group (DDWG). The digital interface is used to connect a video source to a display device, such as a computer monitor. DVI-I is DVI integrated, which means it can support digital and analog.
0
HDMI ports quantity:The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
1
Interface type:
PCI Express x16 4.0
Power
Power consumption (typical):Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
310 W
Supplementary power connectors:
2x 8-pin
Minimum system power supply:The lowest power that is needed.
800 W
Processor
FireStream:A stream processor produced by Advanced Micro Devices (AMD) to use the stream processing/GPGPU (General Purpose Graphics Processing Units) concept for heavy floating-point computations to target various industries, such as the High Performance Computing (HPC), scientific, and financial sectors. Originally developed by ATI Technologies until the company was acquired by AMD in 2006, the product line was previously branded as both ATI FireStream and AMD Stream Processor.
Processor boost clock speed:
1770 MHz
Processor frequency:The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.
1575 MHz
CUDA:CUDA (aka Compute Unified Device Architecture) is a parallel computing platform and programming model created by NVIDIA and implemented by the graphics processing units (GPUs) that they produce. CUDA gives program developers direct access to the virtual instruction set and memory of the parallel computational elements in CUDA GPUs.
Maximum resolution:The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
7680 x 4320 pixels
Graphics processor:Also known as a graphics processing unit (GPU), this is a specialized electronic circuit designed to rapidly manipulate and alter memory to accelerate the creation of images in a frame buffer intended for output to a display. GPUs are used in embedded systems, mobile phones, personal computers, workstations, and game consoles. Modern GPUs are very efficient at manipulating computer graphics.

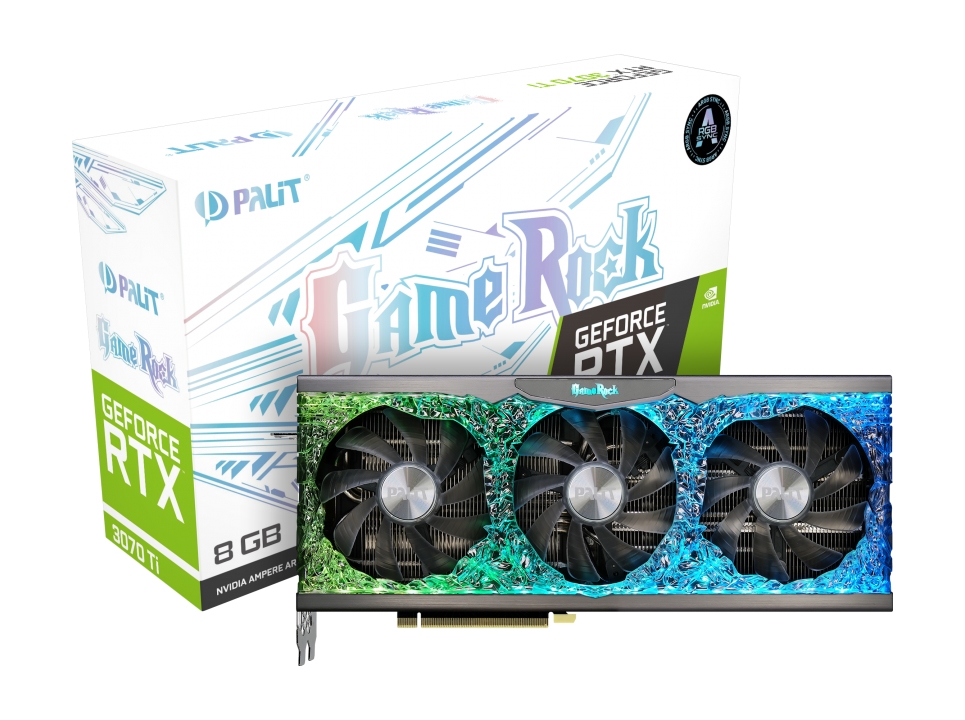

GeForce RTX 3070 Ti
Graphics processor family:The category to which the graphics processor (GPU) belongs e.g. Southern Islands family of Radeon processors (made by AMD), GeForce 600 (made by NVIDIA).
NVIDIA
Weight & dimensions
Height:The measurement of the product from head to foot or from base to top.
136 mm
Depth:The distance from the front to the back of something.
60 mm
Length:The measurement or extent of something from end to end.
304 mm
